General purpose
Terminals

Wall plugs

Code	Wire range mm²	Material thickness mm	Material	Tab thickness mm	Qty per reel	Qty per bag	Drawing	Connector Related
24051	1.00/2.50	0.72	BRASS	1.55	5000	4000		+

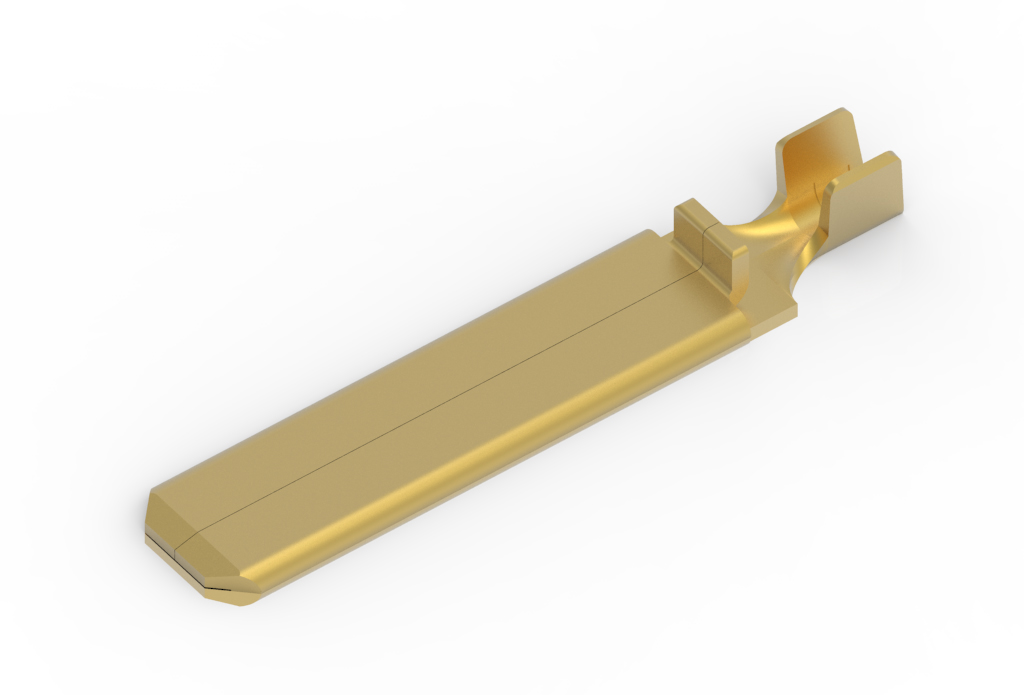

24111	0.50/1.50	0.72	BRASS	1.55	5000	4000		+

Code	Wire range mm²	Material thickness mm	Material	Tab thickness mm	Qty per reel	Qty per bag	Drawing	Connector Related

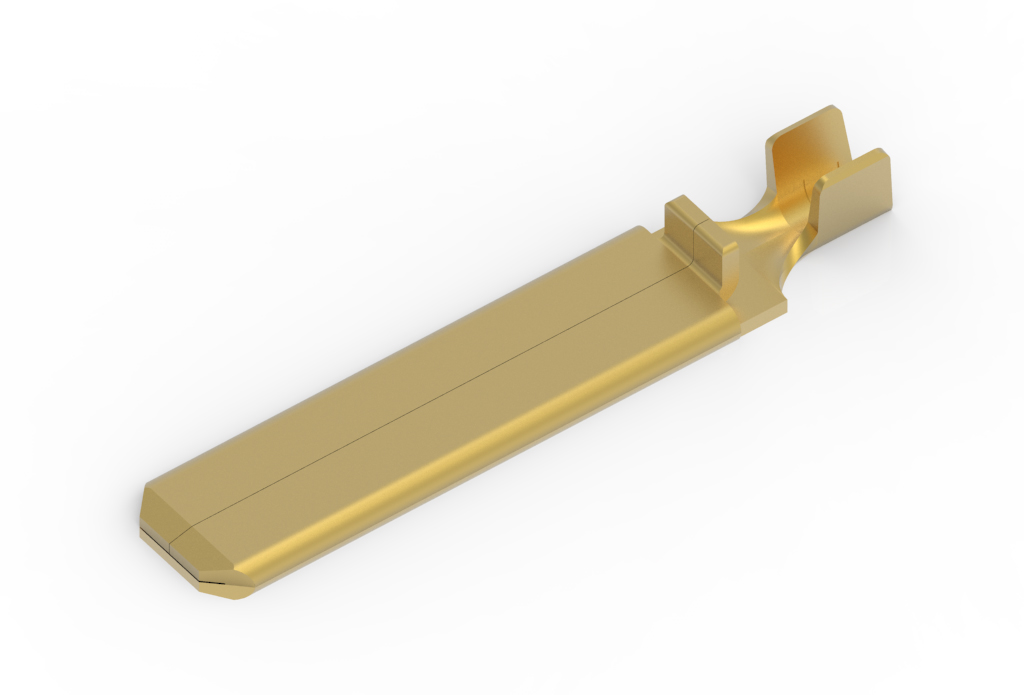

24152	0.50/1.50	0.72	BRASS	1.55	5000	4000		-

Code	Wire range mm²	Material thickness mm	Material	Tab thickness mm	Qty per reel	Qty per bag	Drawing	Connector Related

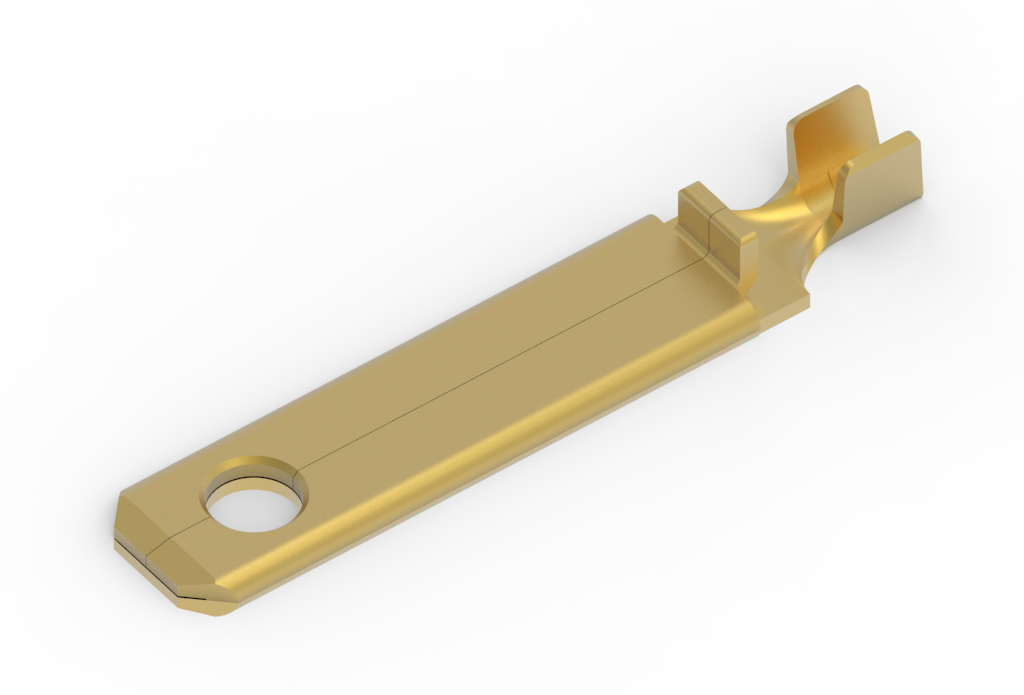

24373	0.50/1.50	0.72	BRASS	1.55	5000	4000		-
24457	1.00/2.50	0.72	BRASS	1.55	5000	4000		-

Code	Wire range mm²	Material thickness mm	Material	Tab thickness mm	Qty per reel	Qty per bag	Drawing	Connector Related

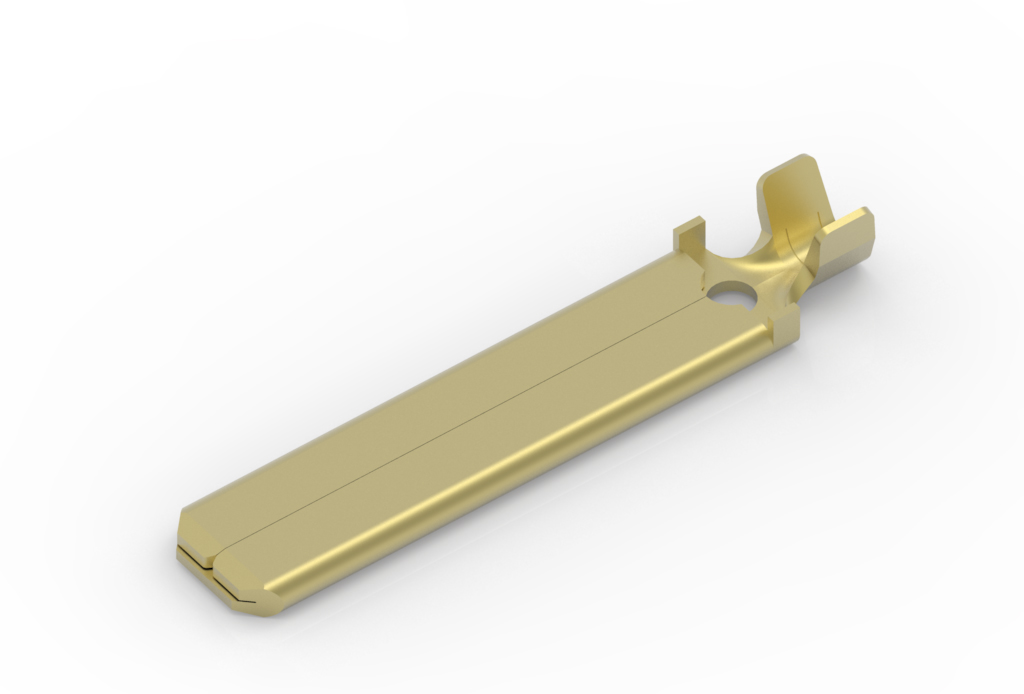

24499	0.50/1.50	0.72	BRASS	1.55	5000	4000		+

Code	Wire range mm²	Material thickness mm	Material	Tab thickness mm	Qty per reel	Qty per bag	Drawing	Connector Related

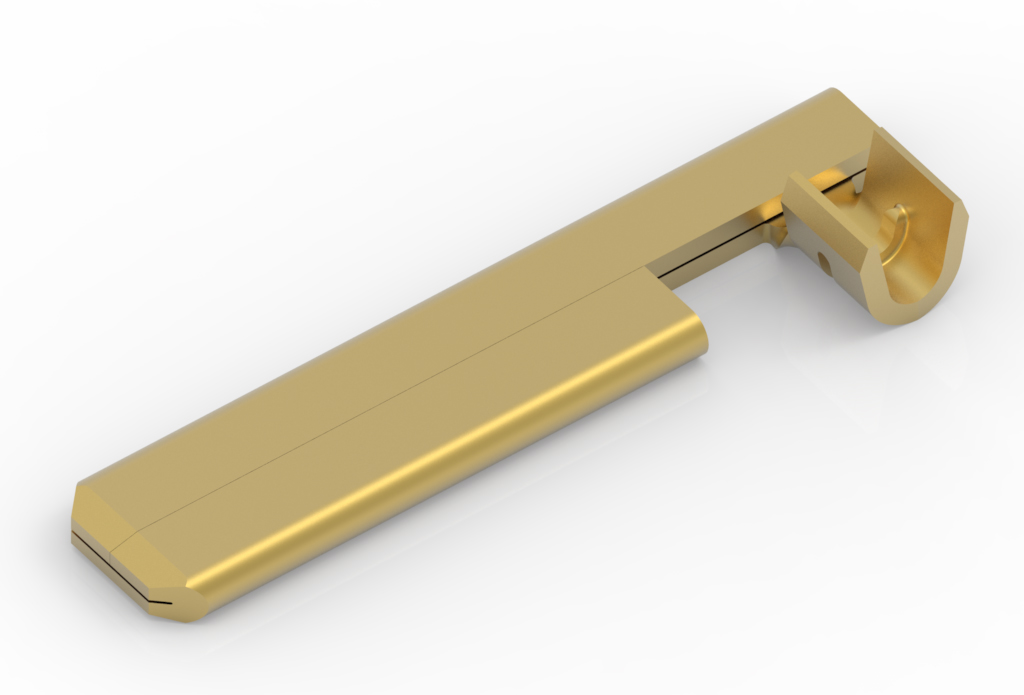

52203	0.75/1.50	0.72	BRASS	1.55	4000	4000		-
52204	0.75/1.50	0.72	BRASS	1.55	4000	4000		-

Code	Wire range mm²	Material thickness mm	Material	Tab thickness mm	Qty per reel	Qty per bag	Drawing	Connector Related

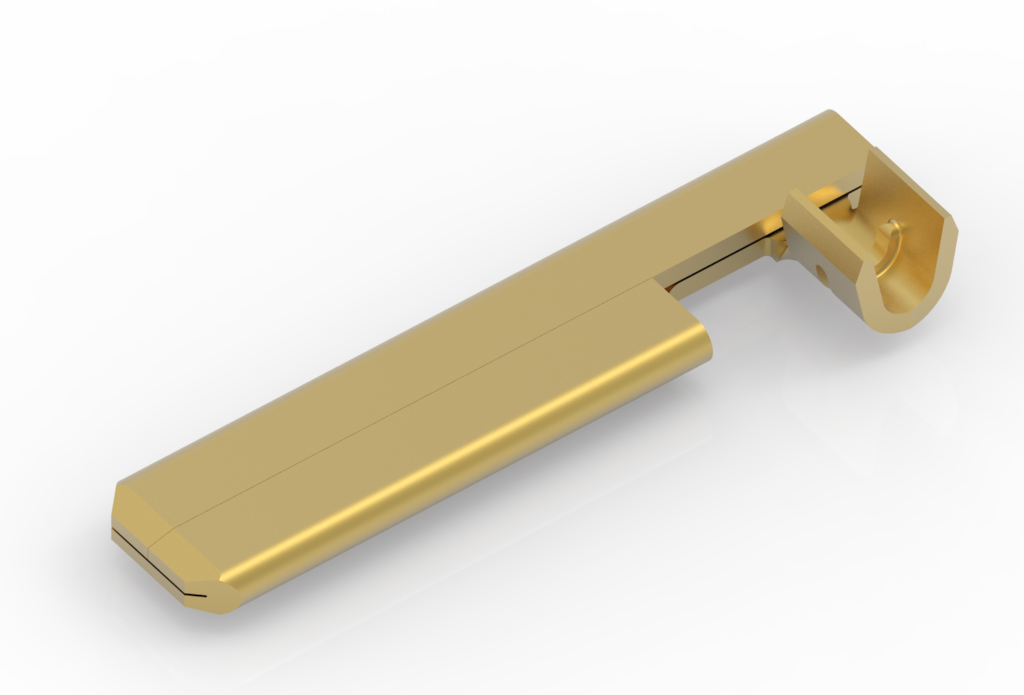

52206	0.75/1.50	0.72	BRASS	1.55	4000	4000		-
52207	0.75/1.50	0.72	BRASS	1.55	4000	4000		-

Code	Material thickness mm	Material	Tab thickness mm	Qty per bag	Drawing	Connector Related
99515	1.55	BRASS	1.55	4000		-

Wall plugs receptacles

Code	Wire range mm²	Material thickness mm	Material	Fits tab mm	Qty per reel	Qty per bag	Drawing	Connector Related

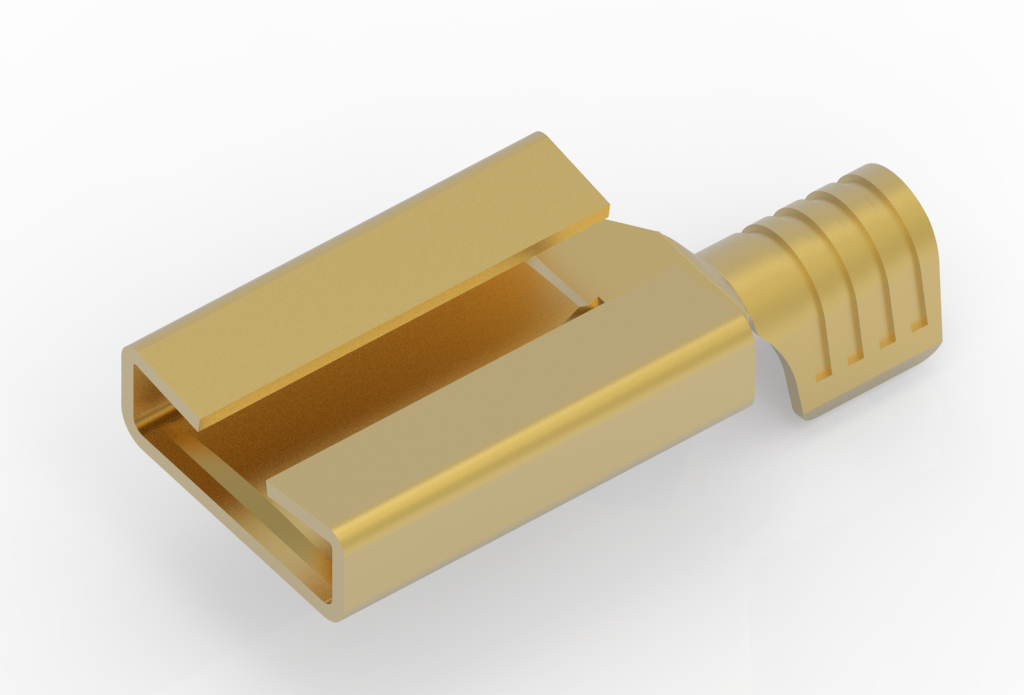

30331	0.80/2.00	0.40	BRASS	1.55	5000	4000		-

20 a flag-type wall plugs

Code	Wire range mm²	Material thickness mm	Material	Tab thickness mm	Qty per reel	Qty per bag	Drawing	Connector Related

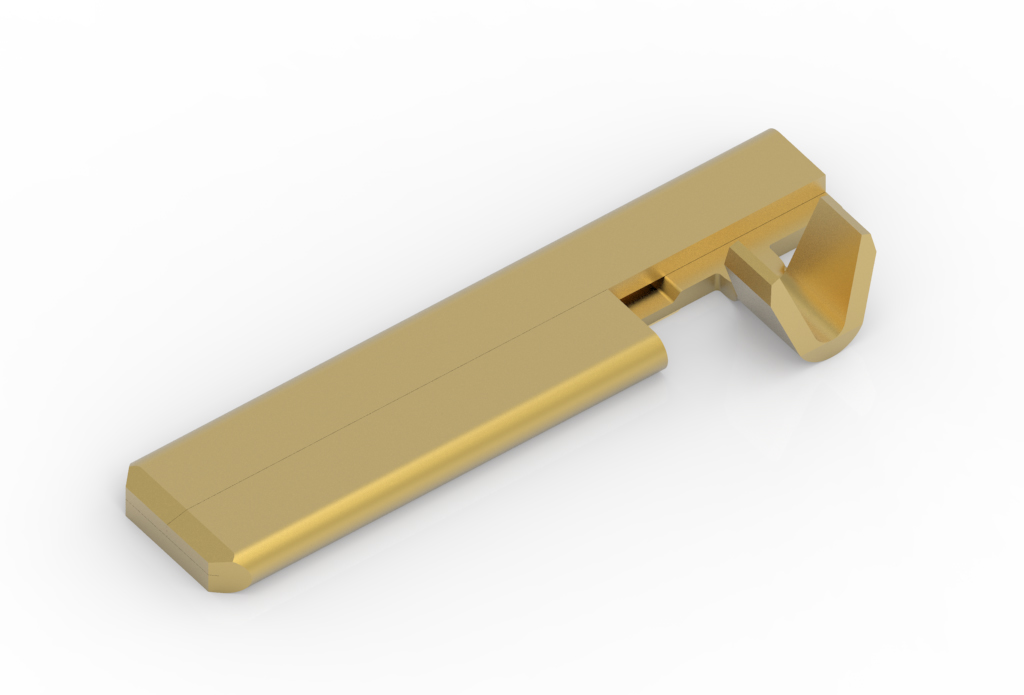

66277	1.00/3.00	0.93	BRASS	2,00 x 8,00	2500	2000		-

Wall plugs

Code	Wire range mm²	Material thickness mm	Material	ø mm	Qty per reel	Qty per bag	Drawing	Connector Related

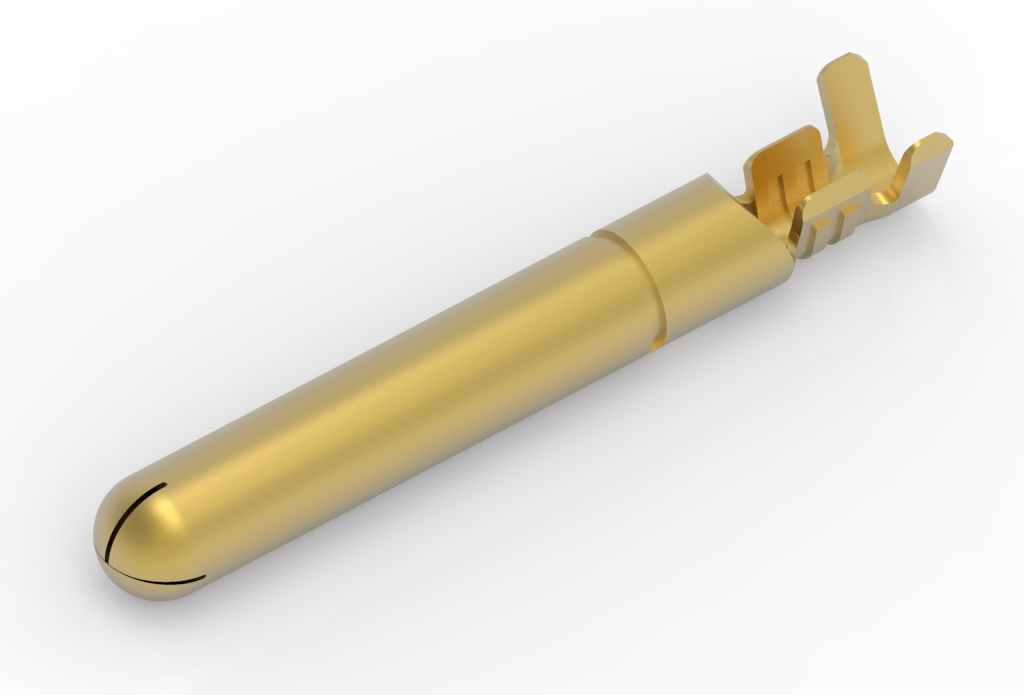

21031	0.50/1.50	0.42	BRASS	4	8000	4000		-
21108	0.50/1.50	0.42	BRASS	4	8000	4000	-	-

Code	Material thickness mm	Material	ø mm	Qty per bag	Drawing	Connector Related

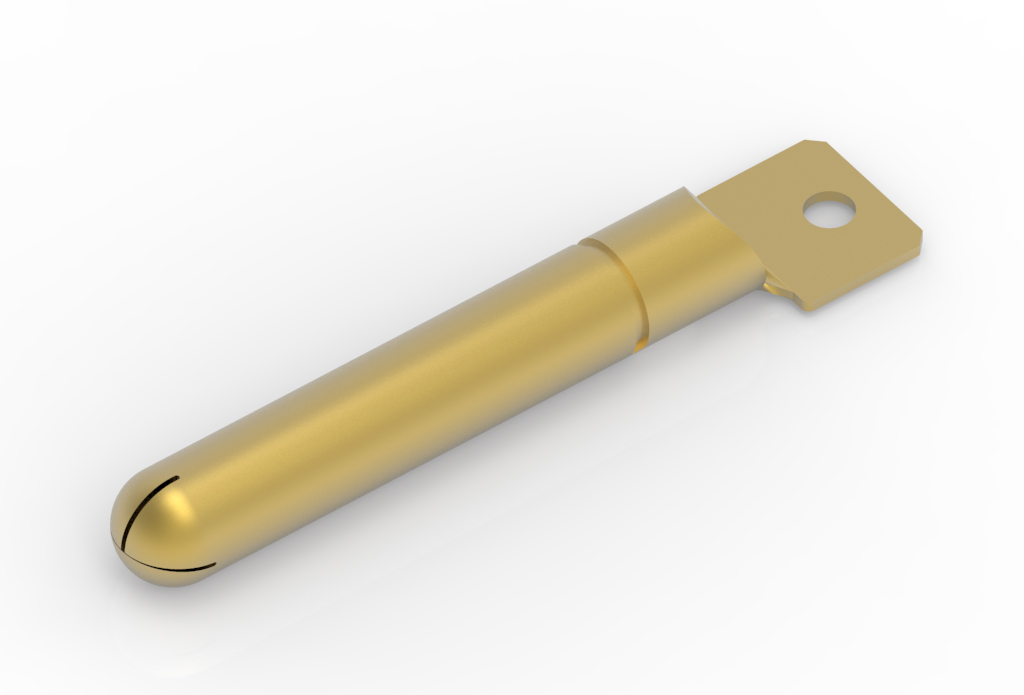

21145	0.42	BRASS	4	5000	-	-
21159	0.42	STEEL	4	5000	-	-

Code	Material thickness mm	Material	ø mm	Qty per bag	Drawing	Connector Related

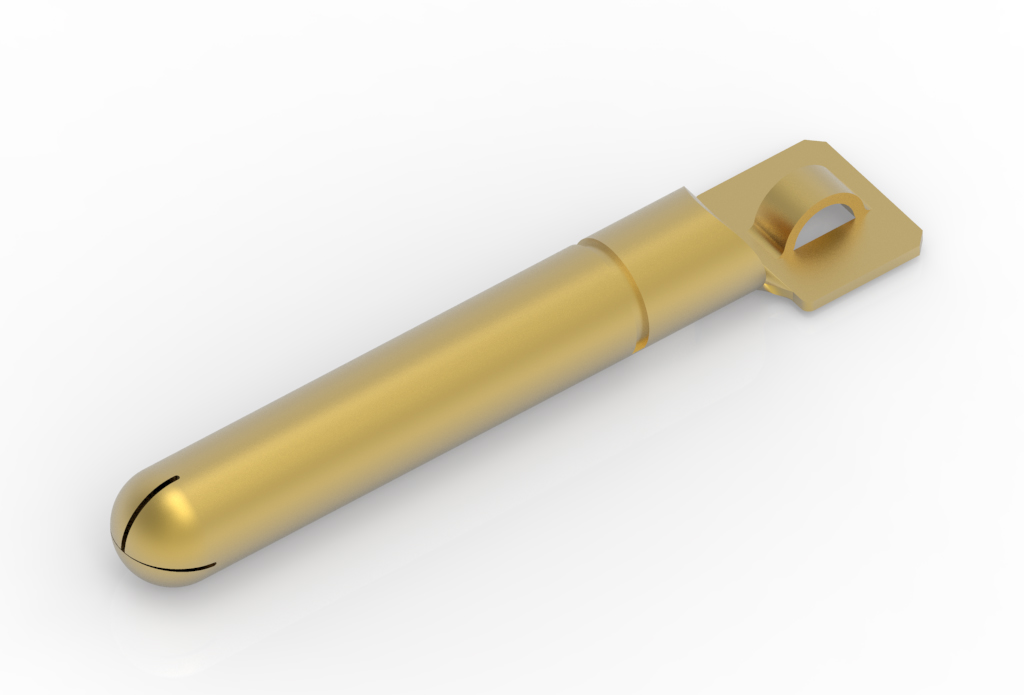

21146	0.42	BRASS	4	5000	-	-

Code	Material thickness mm	Material	ø mm	Qty per bag	Drawing	Connector Related
21168	0.42	BRASS	4	5000	-	-
